Ancon BT – Type C Threading

Ancon’s BT couplers produce a full strength joint yet they are among the smallest in the Ancon range, best suited to large scale projects requiring a high volume of couplers.

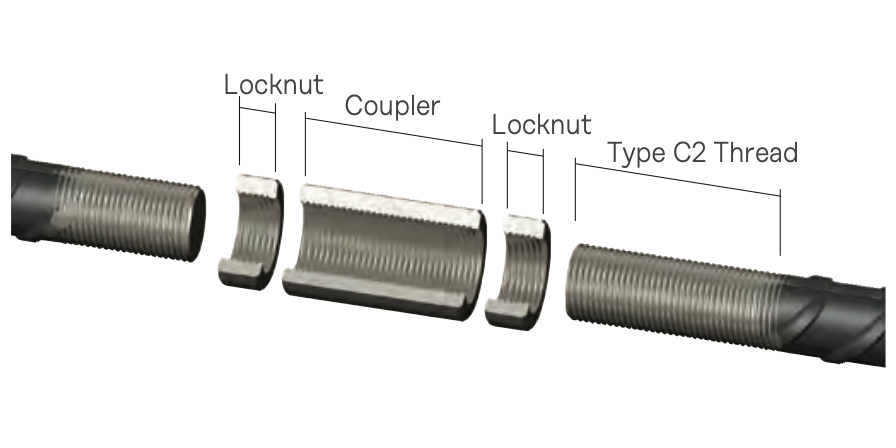

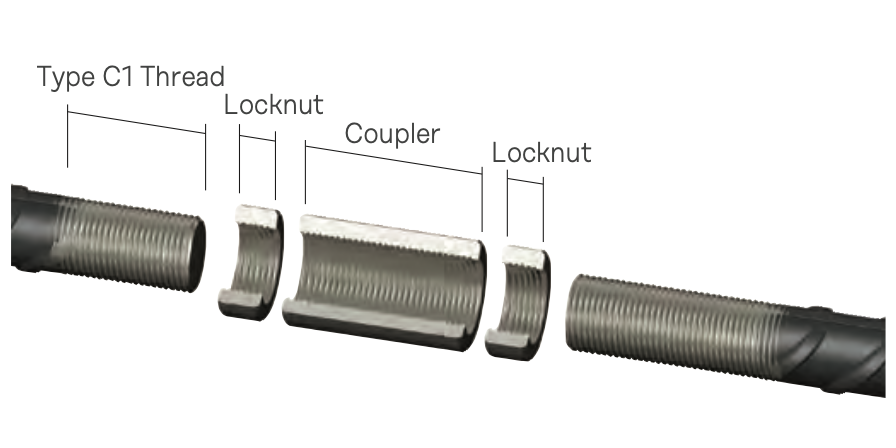

The Ancon BT Type C system uses a BT coupler, two locknuts, and two reinforcing bars with Type C1 and C2 threads. The Type C1 thread is half the coupler length plus a locknut, while the Type C2 thread is the full coupler length plus a locknut. This system is ideal for applications where the continuation bar cannot be rotated.
